說明:

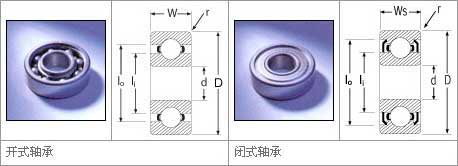

1，開式軸承是指不帶任何密封蓋的軸承。
2，封閉式軸承指軸承兩邊帶密封蓋，zz表示兩邊帶金屬蓋，客戶可以根據自己的要求選擇不同的密封蓋。
3，同一個尺寸的軸承，客戶可以選擇不同的材料，等級。
4，以下尺寸為按國際標準的軸承的基本尺寸，如客戶有不同的要求，我們可以定做。
5，相同的軸承有各種不同的代號和叫法，請確認自己需要的軸承的尺寸。
|
|
內徑(d) |
|
寬度(b) |
|
|
允許回轉數 | ||
|
open |
zz |
潤滑脂 | 潤滑劑 | |||||
| *1000rpm | ||||||||
| 681 | 1 | 3 | 1 | - | 96 | 26 | 130 | 150 |
| 691 | 4 | 1.6 | - | 141 | 37 | 100 | 120 | |
| 681Xzz |
|
4 | 1.2 | 2 | 112 | 33 | 100 | 120 |
| 691Xzz | 5 | 2 | 2.6 | 169 | 50 | 85 | 100 | |
| 601Xzz | 6 | 2.5 | 3 | 330 | 99 | 75 | 90 | |
| 682zz |
|
5 | 1.5 | 2.3 | 169 | 50 | 85 | 100 |
| mr52zz | 5 | 2 | 2.5 | 169 | 50 | 85 | 100 | |
| 692zz | 6 | 2.3 | 3 | 330 | 99 | 75 | 90 | |
| mr62zz | 6 | 2.5 | 2.5 | 330 | 99 | 75 | 90 | |
| mr72zz | 7 | 2.8 | 3 | 386 | 129 | 63 | 75 | |
| 602zz | 7 | 2.8 | 3.5 | 386 | 129 | 60 | 71 | |
| 682Xzz |
2.5 |
6 | 1.8 | 2.6 | 209 | 74 | 71 | 80 |
| 692Xzz | 7 | 2.5 | 3.5 | 386 | 129 | 63 | 75 | |
| mr82X | 8 | 2.5 | - | 558 | 180 | 60 | 67 | |
| 602Xzz | 8 | 2.8 | 4 | 552 | 177 | 60 | 71 | |
| mr63zz |
3 |
6 | 2 | 2.5 | 209 | 74 | 71 | 80 |
| 683zz | 7 | 2 | 3 | 311 | 112 | 63 | 75 | |
| mr83zz | 8 | 2.5 | 3 | 395 | 141 | 60 | 67 | |
| 693zz | 8 | 3 | 4 | 558 | 180 | 60 | 67 | |
| mr93zz | 9 | 2.5 | 4 | 571 | 189 | 56 | 67 | |
| 603zz | 9 | 3 | 5 | 571 | 189 | 56 | 67 | |
| 623zz | 10 | 4 | 4 | 631 | 219 | 50 | 60 | |
| 633zz | 13 | 5 | 5 | 1301 | 488 | 40 | 48 | |
| mr74zz |
4 |
7 | 2 | 2.5 | 255 | 108 | 60 | 67 |
| mr84zz | 8 | 2 | 3 | 395 | 141 | 56 | 67 | |
| 684zz | 9 | 2.5 | 4 | 641 | 227 | 53 | 63 | |
| mr104zz | 10 | 3 | 4 | 711 | 272 | 48 | 56 | |
| 694zz | 11 | 4 | 4 | 957 | 350 | 48 | 56 | |
| 604zz | 12 | 4 | 4 | 957 | 350 | 48 | 56 | |
| 624zz | 13 | 5 | 5 | 1301 | 488 | 40 | 48 | |
| 634zz | 16 | 5 | 5 | 1340 | 523 | 36 | 43 | |
| mr85zz |
5 |
8 | 2 | 2.5 | 218 | 90 | 53 | 63 |
| mr95zz | 9 | 2.5 | 3 | 431 | 169 | 50 | 60 | |
| mr105zz | 10 | 3 | 4 | 431 | 169 | 50 | 60 | |
| mr115zz | 11 | - | 4 | 716 | 282 | 45 | 53 | |
| 685zz | 11 | 3 | 5 | 716 | 282 | 45 | 53 | |
| 695zz | 13 | 4 | 4 | 1077 | 432 | 43 | 50 | |
| 605zz | 14 | 5 | 5 | 1329 | 507 | 40 | 50 | |
| 625zz | 16 | 5 | 5 | 1729 | 675 | 36 | 43 | |
| 635zz | 19 | 6 | 6 | 2336 | 896 | 32 | 40 | |
| mr106zz |
6 |
10 | 2.5 | 3 | 496 | 218 | 45 | 53 |
| mr126zz | 12 | 3 | 4 | 716 | 295 | 43 | 50 | |
| 686zz | 13 | 3.5 | 5 | 1082 | 442 | 40 | 50 | |
| 696zz | 15 | 5 | 5 | 1340 | 523 | 40 | 45 | |
| 606zz | 17 | 6 | 6 | 2263 | 846 | 38 | 45 | |
| 626zz | 19 | 6 | 6 | 2336 | 896 | 32 | 40 | |
| 636zz | 22 | 7 | 7 | 3333 | 1423 | 30 | 36 | |
| mr117zz |
7 |
11 | 2.5 | 3 | 455 | 202 | 43 | 50 |
| mr137zz | 13 | 3 | 4 | 541 | 276 | 40 | 48 | |
| 687zz | 14 | 3.5 | 5 | 1173 | 513 | 40 | 50 | |
| 697zz | 17 | 5 | 5 | 1605 | 719 | 36 | 43 | |
| 607zz | 19 | 6 | 6 | 2336 | 896 | 36 | 43 | |
| 627zz | 22 | 7 | 7 | 3287 | 1379 | 30 | 36 | |
| 637zz | 26 | 9 | 6 | 4563 | 1983 | 28 | 34 | |
| mr128zz |
|
12 | 2.5 | 3.5 | 543 | 274 | 40 | 48 |
| mr148zz | 14 | 3.5 | 4 | 817 | 386 | 38 | 45 | |
| 688zz | 16 | 4 | 5 | 1252 | 592 | 36 | 43 | |
| 698zz | 19 | 6 | 6 | 2237 | 917 | 36 | 43 | |
| 608z | 22 | 7 | 7 | 3293 | 1379 | 34 | 40 | |
| 628zz | 24 | 8 | 8 | 3333 | 1423 | 28 | 34 | |
| 638zz | 28 | 9 | 9 | 4563 | 1983 | 28 | 34 | |
| 679zz |
9 |
14 | 3 | 4.5 | 919 | 468 | 36 | 42 |
| 689zz | 17 | 4 | 5 | 1327 | 668 | 36 | 43 | |
| 699zz | 20 | 6 | 6 | 2467 | 1081 | 34 | 40 | |
| 609zz | 24 | 7 | 7 | 3356 | 1444 | 32 | 38 | |
| 629zz | 26 | 8 | 8 | 4575 | 1983 | 28 | 34 | |
| 639zz | 30 | 10 | 10 | 4659 | 2080 | 24 | 30 | |
| 6700zz |
|
15 | 4 | 4 | 855 | 435 | 15 | 17 |
| 6800zz | 19 | 5 | 5 | 1716 | 840 | 37 | 43 | |
| 6900zz | 22 | 6 | 6 | 2695 | 1273 | 34 | 41 | |
| 6000zz | 26 | 8 | 8 | 4550 | 1970 | 30 | 36 | |
| 6200zz | 30 | 9 | 9 | 5100 | 2390 | 24 | 30 | |
| 6300zz | 35 | 11 | 11 | 8100 | 3450 | 22 | 26 | |
| 6701zz |
12 |
18 | 4 | 4 | 926 | 530 | 13 | 15 |
| 6801zz | 21 | 5 | 5 | 1915 | 1041 | 33 | 39 | |
| 6901zz | 24 | 6 | 6 | 2886 | 1466 | 31 | 36 | |
| 6001zz | 28 | 8 | 8 | 5100 | 2370 | 28 | 32 | |
| 6201zz | 32 | 10 | 10 | 6800 | 3050 | 22 | 28 | |
| 6301zz | 37 | 12 | 12 | 9700 | 4200 | 990 | 425 | |
